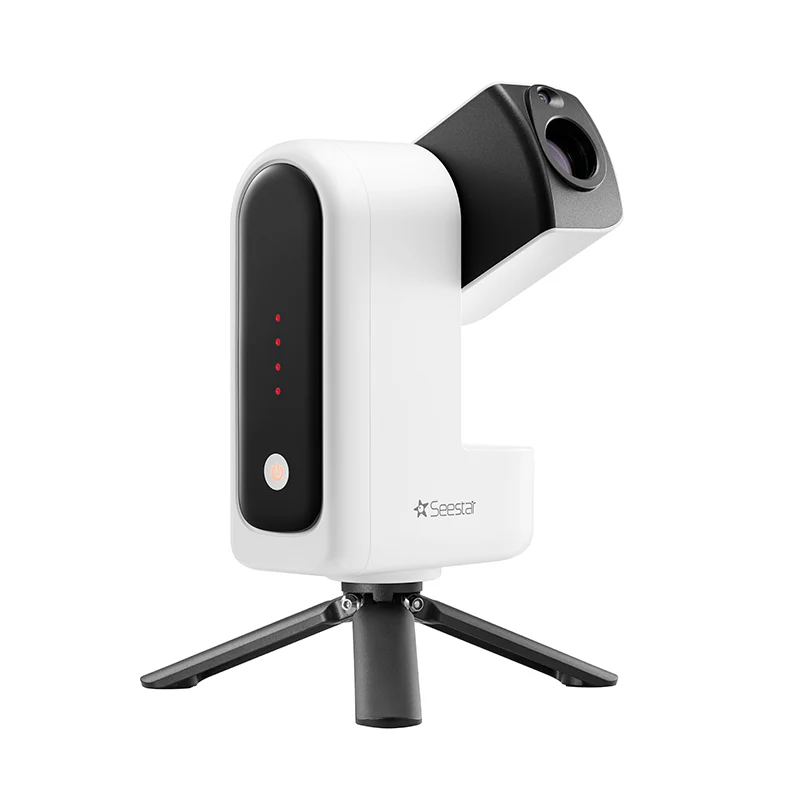

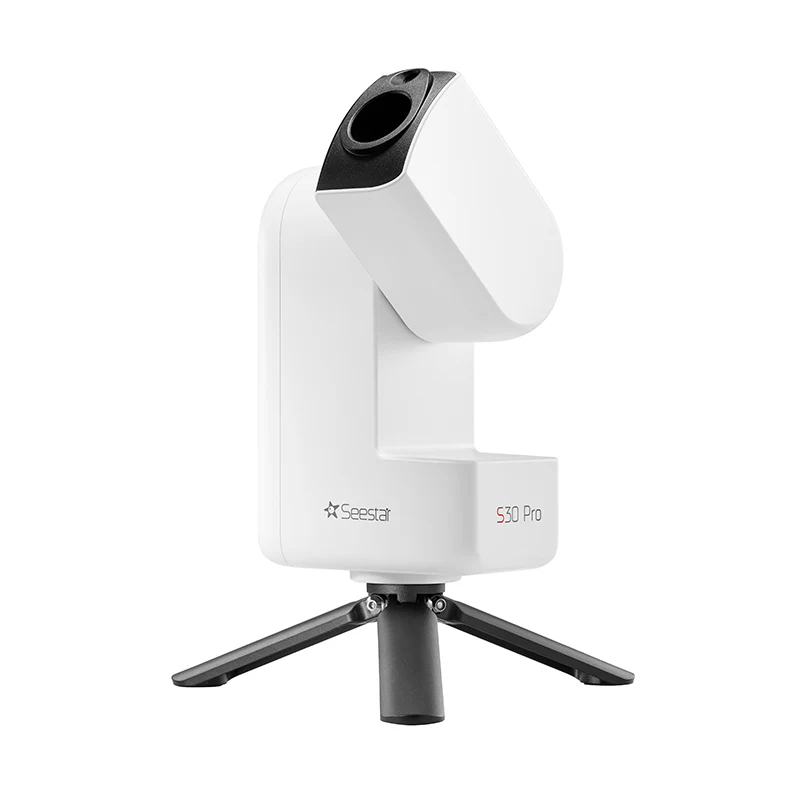

Seestar S30 Pro Smart Telescope

Specification

Product Name	Seestar S30 Pro
Sensor	Tele: Sony IMX585; Wide: Sony IMX586
Resolution	Tele: 2160 x 3840 (8.3MP); Wide: 2160 x 3840 (8.3MP)
Field of View	Tele: 4.6°; Wide: 63°
Aperture	Tele: 30mm; Wide: 3.4mm
Focal Ratio	Tele: F/5.3; Wide: F/1.75
Focal Length	Tele: 160mm; Wide: 6mm
Optical Lens	4-Element Apochromatic Lens (with ED glass)
Wide-Angle AF	Support
Working Distance	Tele: 6m-∞; Wide: 0.1m-∞
Built-in Filter	UV / IR Cut Filter
	Astronomical Light Pollution Filter
	(OIII 30 nm / Ha 20 nm Bandwidth)
	Dark Field Filter
External Filter	Magnetic Solar Filter
Storage	128GB eMMC
Battery Capacity	6000mAh, Battery Life: 6 hours (ZWO laboratory test data)
Power Input	Type-C, DC 5V~3A
Transmission Mode	Wi-Fi / USB Type-C / Bluetooth
Wi-Fi Reset	Support
Image Formats	JPEG / FITS
Video Formats	MP4 / AVI
Wi-Fi Specifications	5G / 2.4G
Wi-Fi Range*	Within 10m
Bluetooth Range*	Within 5m
Mount Type	Alt-azimuth (Supports Equatorial Mode)
Mounting Thread	3/8-16
Working Temperature	-10℃~40℃
Charging Temperature	0℃~40℃
Storage Temperature	-10℃~60℃
Operating Humidity	20%~80%
Storage Humidity	20%~50%
Net Weight	1.65KG
Size	210mm x 140mm x 80mm
